5C908 Fuse Holder Automotive Wire Harness with PVC Wire 105℃ 300V and UL1007-22AWG Wire for Truck GPS
Detalhes do produto:
| Lugar de origem: | Guangdong, China |
| Marca: | Edgarcn |
| Certificação: | RoHS, UL, ISO9001,IATF16949 |
| Número do modelo: | personalizado |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 500 |
|---|---|
| Preço: | $5-15 |
|
Informação detalhada |
|||
| Número da peça: | Cabo 5C908 | Comprimento do fio: | 30cm |
|---|---|---|---|
| Fios Awg: | UL1007-22AWG | Cor do fio: | Vermelho preto |
| Contagem de fusíveis: | 2 | Material de arame: | PVC |
| Temperatura do fio: | 105 ℃ | Tensão do fio: | 300V |
| Tipo de conector: | Molex | Tipo de processo: | sobre moldagem |
| Contagem de pinos: | 20 | VCC primário: | BRANCO/VERMELHO |
| Terreno primário: | Preto | Host rxd: | Verde |
| Host TXD: | Azul | ||
| Destacar: | 5C908 Fuse Holder Automotive Wire Harness,PVC Wire 105℃ 300V Automotive Wire Harness,UL1007-22AWG Wire Automotive Wire Harness |
||
Descrição de produto

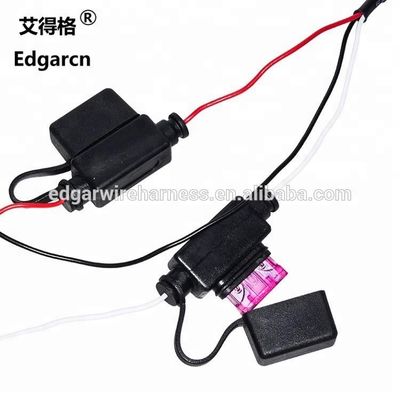

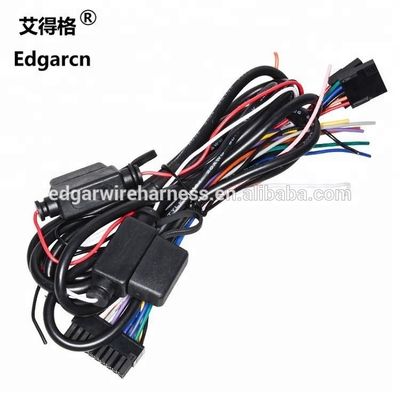

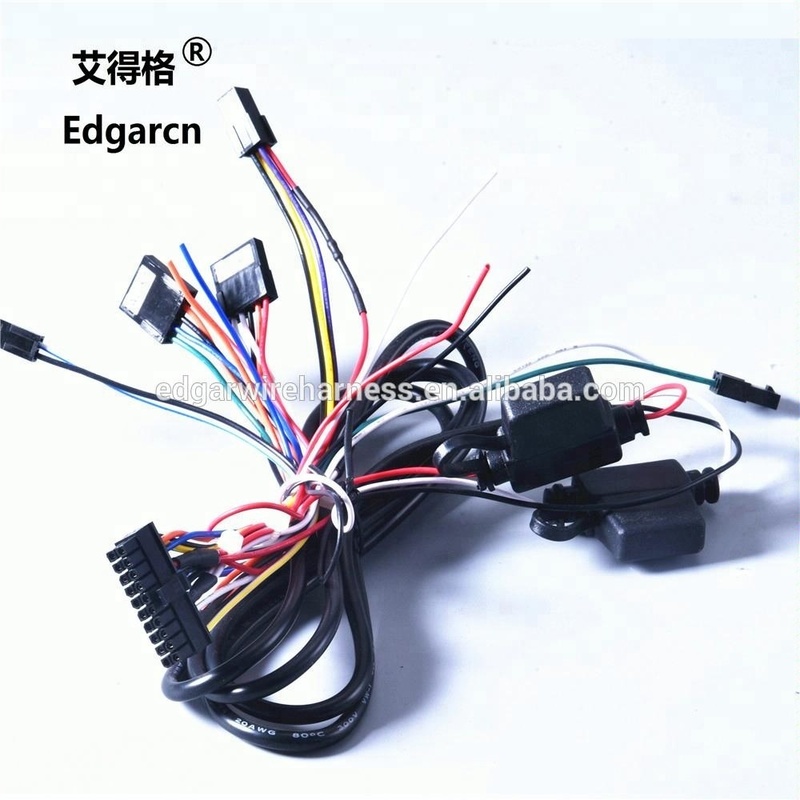

5C908 Fuse Holder Automotive Wire Harness for Truck GPS
Edgarcn 5C908 fuse automotive wire harness, cable assembly, and wiring harness solution for automotive applications.
Product Specifications
Part number: Cable 5C908
Wire length: 30cm
Wire AWG: UL1007-22AWG
Color: Black & Red
Features: Includes 2 fuses
Application: Automotive

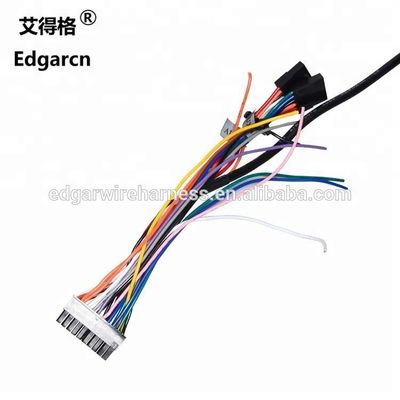

Molex Micro-Fit 20 Pin Configuration
| Pin Number | Signal description | Color | Pin Number | Signal description | Color |
|---|---|---|---|---|---|
| 1 | Ground | Black | 11 | Output 2 | White/Yellow |
| 2 | Output 0 | Green | 12 | Input 2 | Brown |
| 3 | Input 1 | Yellow | 13 | Host RXD | Green |
| 4 | Host TxD | Blue | 14 | Primary VCC input | White/Red |
| 5 | ADC1 Input | Orange | 15 | Primary Ground | Black |
| 6 | Reserved | Red | 16 | 1 Bit Bus GND | Black |
| 7 | Reserved | White | 17 | 1 Bit Bus Data | White/Blue |
| 8 | Ignition | Violet | 18 | Aux Port - TX data | White/Orange |
| 9 | V00 | Orange | 19 | Aux Port - GND | Black |
| 10 | Output 1 /Boot | Blue | 20 | Aux Port - Rx data | White/Yellow |
Packaging & Lead Time
Packaging details can be customized according to client specifications.
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
International shipping available via DHL, UPS, FedEx, TNT, ARAMEX and EMS. Customers can choose shipping by air, sea or other methods.
Frequently Asked Questions
Q: Can you help with design?
A: Yes, we are an ODM/OEM company specializing in wire harness and cable assembly since 1999.
Q: When will you start to help design?
A: We provide initial sketches for discussion. After order confirmation, we create detailed drawings for client approval.
Q: What if quality issues occur?
A: Our quality team responds within 72 hours to resolve any issues, as we prioritize long-term customer relationships.
Q: Do you have standard products to reduce lead time?
A: Yes, we maintain over 1000 molds and 5000+ products developed through our 20+ years of wire harness expertise.
